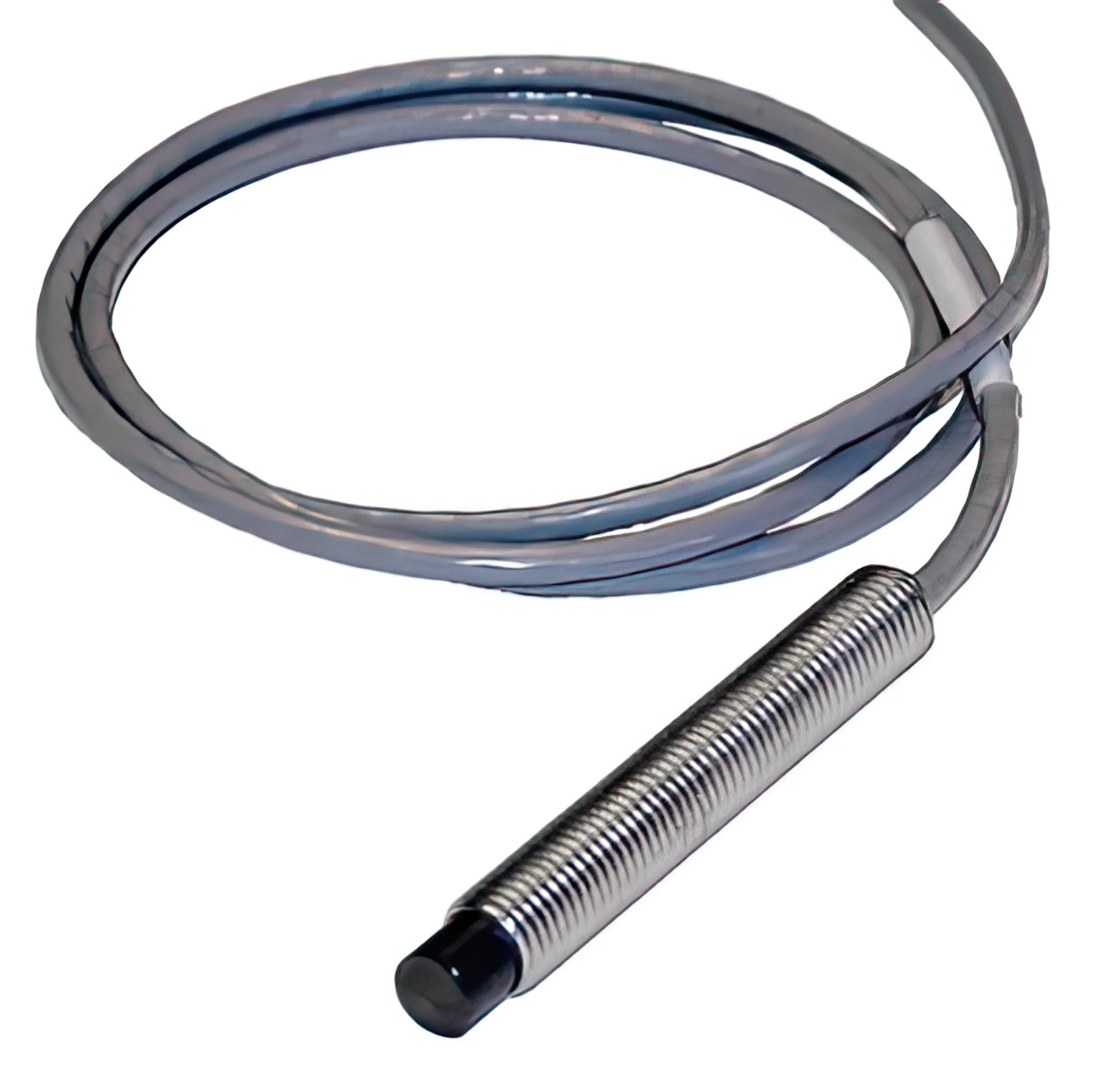

SC-2440
Self-contained analog output displacement sensor
- Self-contained electronics
- Built-in temperature sensor with 0.5-1.2 VDC output for active temperature correction
- Fixed gain output
- Reverse polarity and short circuit protection
- No calibration required
- Low cost, available from stock
- Excellent performance with ferrous targets
- Variable voltage input from 15 to 30 volts DC
- Compact and rugged, IP-67 submersible housing
- Extremely low hysteresis
Specifications
| Temperature output | 0.5 to 1.2 VDC from 0°C to 70°C (sensor temperature continuously monitored) |
|---|---|
| Input voltage | 15 to 30 VDC |
| Ingress protection | IP-67 (submersible) |
| Thermal sensitivity | Standard 0.1% FS/°F; compensated 0.02% FS/°F |
| Output options | 0-10 VDC (standard), 4-20 mA, differential 0-10 VDC |
Sensors
Downloads
Certifications
CE compliant. Declaration of Conformity available on request.
Options
Accessories
Cables, mounting hardware, calibration tools, and replacement parts are available. See the Accessories data sheet for details.
Frequently Asked Questions
Does the SC-2440 require calibration?
No. The SC-2440 ships as a self-contained, fixed-gain sensor that requires no calibration and is available from stock for immediate delivery.
How does the built-in temperature sensor help?
The sensor temperature is continuously monitored and output as 0.5-1.2 VDC across 0-70°C. A microprocessor or PLC can read that value to actively correct the displacement output as temperature changes.
Is the SC-2440 suitable for wet or harsh environments?
Yes. It is housed in a compact, rugged IP-67 submersible enclosure and includes reverse-polarity and short-circuit protection.
