KD-2306

Q: What can the KD-2306 replace?

It is a cost-effective replacement for LVDTs, air gauges, dial indicators, and micrometers in applications from lab work to production and process automation.

Q: What outputs does the KD-2306 provide?

0-10 VDC standard, plus 0-5 VDC, ±5 VDC, 4-20 mA, and a differential 0-10 VDC output — single-ended, bipolar, or differential.

Q: How accurate is it across temperature?

Standard thermal sensitivity is 0.1% FS/°F; an optional temperature-compensated calibration improves that to 0.02% FS/°F over a specified range.

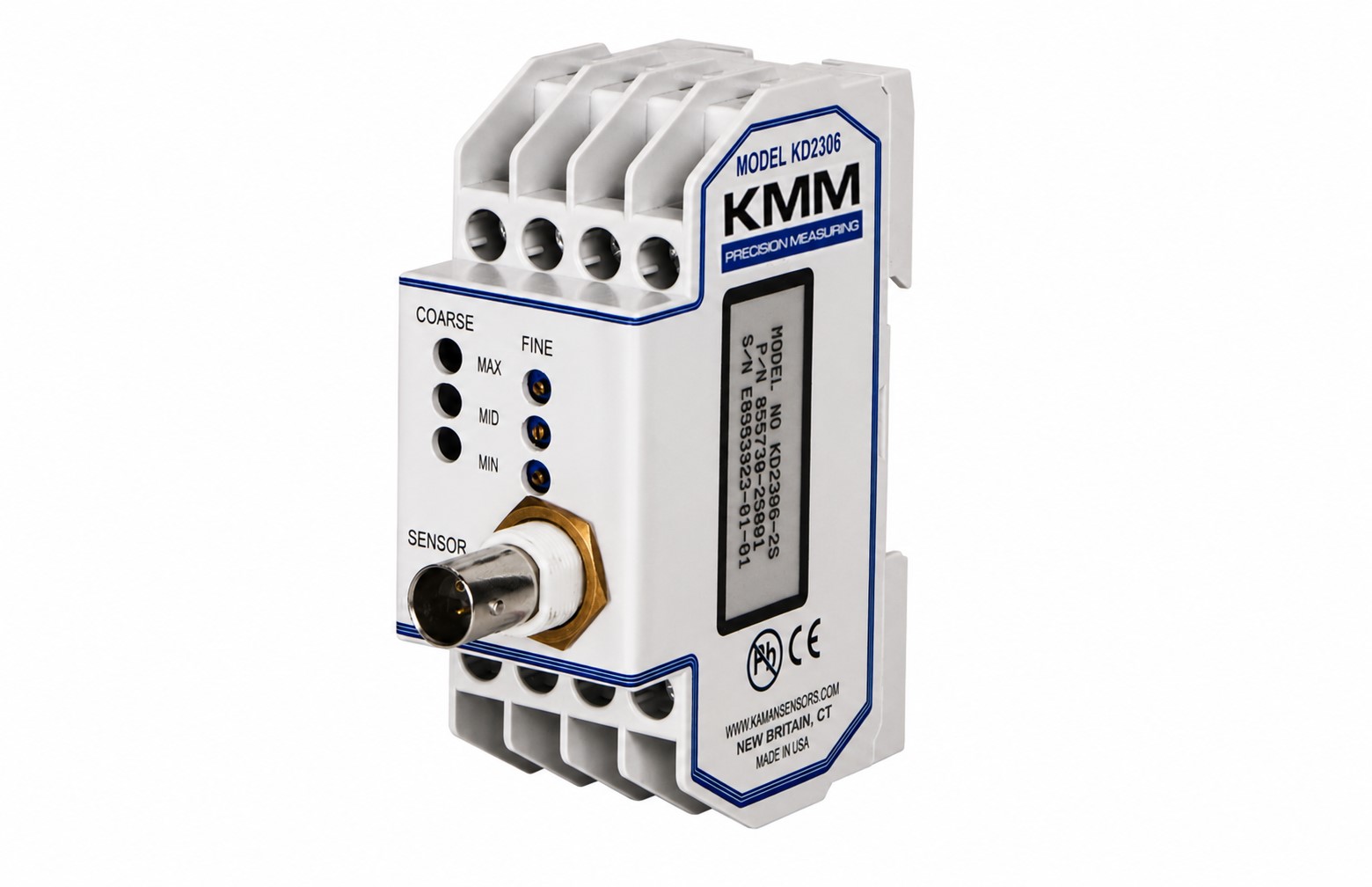

Single-channel multi-purpose non-contact displacement sensing system

Supports both dual and single coil sensors
Terminal I/O connections
Auto-synchronization of multiple channels
Analog DC and 4-20mA outputs
Single ended, bipolar, and differential voltage outputs
Front face coarse and fine calibration controls
RoHS compliant and CE marked
DIN rail configuration ideal for industrial, research and OEM applications

Request a Quote

Specifications

Resolution	0.01% FS
Frequency response	50 KHz (-3dB point); higher response available on request
Nonlinearity	<1% FS
Thermal sensitivity	Standard 0.1% FS/°F; compensated 0.02% FS/°F
Output options	0-10 VDC (standard); 0-5 VDC, ±5 VDC, 4-20 mA
Operating temperature range	Electronics +32°F to +132°F (0°C to +55°C)
Storage temperature range	Electronics -67°F to +220°F (-55°C to +105°C)
Power supply requirements	Voltage +15 to +30 Vdc; regulation ±½ Vdc; current 150 mA

Sensors

Downloads

Certifications

DECLARATION OF CONFORMITY

Model Number
KD-2306 non-contact linear proximity/displacement measuring system

Conforms with Applicable Standards of:
Council Directive 89/336/EEC as amended by 92/31/EEC (EMC Directive)
Council Directive 73/23/EEC as amended by 93/68/EEC (LVD Directive)

EMC
EN 61326-1:2006 — Industrial Electrical Equipment for Measurement, Control and Laboratory Use
EN 55011:2007 — Class A Group 1 Radiated Emissions

LVD
EN 61010-1:2001 — requires a limited-energy power supply per Article 9.3. The KD-2306 does not use or switch voltages above 60 VDC or 42.4 VAC peak (30 VAC rms).

Options

Sensor Cables — cable extension (longer or shorter than standard), in-line connector splice for easy sensor replacement, and hermetic in-line splice for pressure-boundary pass-throughs.

Special Calibrations — custom range, target-material matching, and temperature compensation (improving thermal sensitivity to 0.02% FS/°F over a specified 100°F range).

Output — 4-20 mA and differential 0-10 VDC in addition to the standard 0-10 VDC.

Synchronization — oscillator sync eliminates beat-note interference when multiple sensors sit within three sensor diameters of each other.

Log Amp Bypass — reduces noise for extremely short-range calibrations.

Accessories

Cables, mounting hardware, calibration tools, and replacement parts are available. See the Accessories data sheet for details.

Frequently Asked Questions

What can the KD-2306 replace?

It is a cost-effective replacement for LVDTs, air gauges, dial indicators, and micrometers in applications from lab work to production and process automation.

What outputs does the KD-2306 provide?

0-10 VDC standard, plus 0-5 VDC, ±5 VDC, 4-20 mA, and a differential 0-10 VDC output — single-ended, bipolar, or differential.

How accurate is it across temperature?

Standard thermal sensitivity is 0.1% FS/°F; an optional temperature-compensated calibration improves that to 0.02% FS/°F over a specified range.
