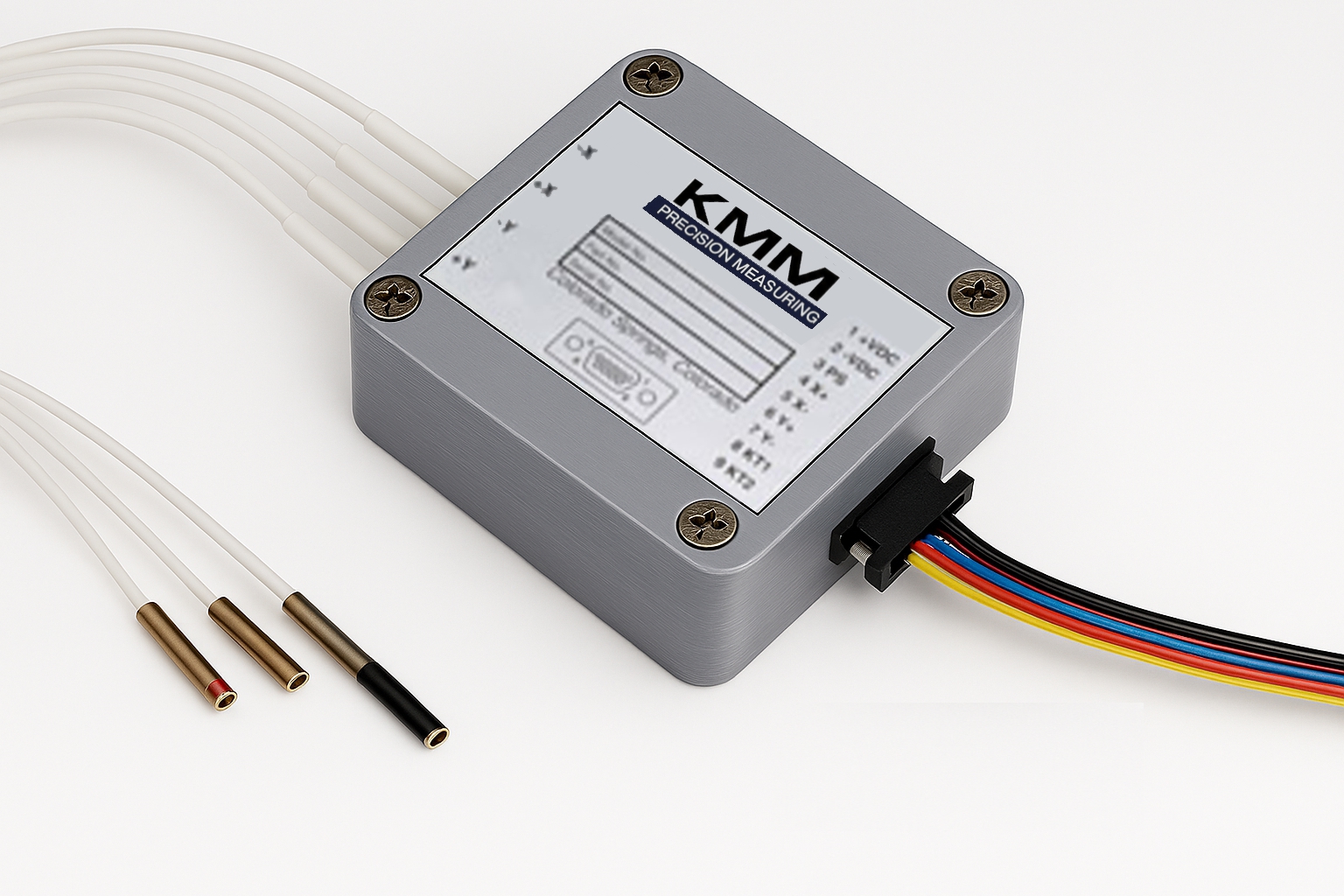

DIT-5200
Commercial differential impedance transducer — COTS equivalent of the KD-5100
- True differential eddy current balanced-bridge technology for common-mode rejection
- Commercial (COTS) equivalent of the KD-5100 where MIL-SPEC, size, weight, and power are not critical
- Two precisely matched sensors per channel detect the centered/aligned target position
- Differential, bipolar output
- Exceptional thermal stability from electrically matched sensors on opposing bridge legs
- Available in single- and dual-channel configurations
Specifications
| Resolution | Sub-nanometer capable |
|---|---|
| Sensitivity | Up to 10 V/mil |
| Linearity | To 0.1% of full range |
| Output | Differential, bipolar |
| Configurations | Single- and dual-channel |
Sensors
Certifications
Commercial (COTS) design. See the DIT-5200L for the CE-marked, lower-noise successor.
Options
Accessories
Matched sensor pairs and cables are available. Contact an applications engineer for configuration.
Frequently Asked Questions
How does the DIT-5200 relate to the KD-5100?
The DIT-5200 is the commercial (COTS) equivalent of the KD-5100, intended for applications where MIL-SPEC qualification, size, weight, and power consumption are not critical.
Why choose a differential system?
Two matched sensors on opposing legs of the same bridge produce a push-pull output that amplifies linear output-per-displacement and cancels common-mode noise and drift — yielding greater resolution and thermal stability than single-ended systems.
Is a newer version available?
Yes — the DIT-5200L is identical in form with lower noise (better resolution) and CE Marking.
