KD-1950
High-temperature displacement sensor with 0.150 inch range
- Operating temperatures from -320°F to +1000°F (+1200°F short term)
- Withstands pressures to 3500 psi
- Measuring range of 0.150 inch (3.81 mm)
- Hermetically sealed, laser-welded Inconel 625 housing
- Dual-coil design minimizes temperature and radiation effects
- Nonlinearity within ±1% FSO
- KD-1950M version available for magnetic targets
- Optional cable lengths available on request
Specifications
| Measuring range | KD-1950: 0.150 in (3.81 mm); KD-1950M: 0.100 in (2.54 mm) |
|---|---|
| Maximum mechanical offset | 0.005 in |
| Electronics | KDM-8206 |
| Power input | 120 Vac |
| Output | KD-1950: 0-1.5 Vdc nominal; KD-1950M: 0-1.0 Vdc nominal |
| Static resolution | 50 µinch (0.0013 mm) at mid range |
| Dynamic resolution | 100 µinch (0.0025 mm) at mid range |
| Repeatability | 100 µinch at mid range |
| Operating temperature | -320°F to +77°F or +77°F to +1000°F (+538°C) |
| Nonlinearity | Within ±1% FSO at customer-selected calibration temperature |
| Zero shift | 0.02%/°F FSO (0.036%/°C) |
| Sensitivity shift | 0.02%/°F FSO (0.036%/°C) |
| Frequency response | 0-10 kHz (3 dB) |
| Sensor material | Inconel 625, welded and hermetically sealed |
| Cable material | Inconel 600 sheathed, mineral insulated |
| Standard cable lengths | Hardline 10 ft; softline 5 ft; optional lengths on request |
| Target material | Nonmagnetic and magnetic conductors |
| Operating pressure | To 3500 psi |
| Mounting | Flange mount, smooth body |
Sensors
Certifications
Options
Accessories
Frequently Asked Questions
What temperatures can the KD-1950 operate in?
The KD-1950 operates from -320°F to +1000°F continuously, and up to +1200°F short term. It is calibrated for either the cryogenic range (-320°F to +77°F) or the high-temperature range (+77°F to +1000°F).
What pressure can the KD-1950 withstand?
The KD-1950 is rated to 3500 psi. For applications above 3500 psi, the KD-1925 is rated to 5000 psi.
What is the difference between the KD-1950 and KD-1950M?
The KD-1950M is designed for magnetic targets and has a measuring range of 0.100 inch (2.54 mm). The standard KD-1950 has a measuring range of 0.150 inch (3.81 mm).
What electronics does the KD-1950 use?
The KD-1950 uses KDM-8206 signal conditioning electronics, available in single-channel and multi-channel rack-mountable configurations.
What applications is the KD-1950 used for?
Typical applications include nuclear reactors, steam and gas turbines, turbine and rocket engines, chemical processes, research projects, and high-temperature processing.
How does the KD-1950 compare to the KD-1925 and KD-1975?

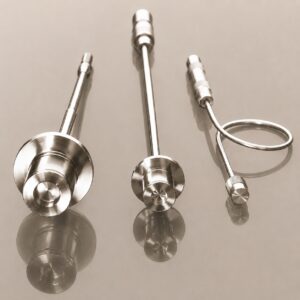

The KD-1950 offers a 0.150 inch measuring range, between the KD-1925 (0.050 inch) and the KD-1975 (0.200 inch). The KD-1925 has the highest pressure rating at 5000 psi, while the KD-1950 and KD-1975 are rated to 3500 psi.
